What are the wiring methods of DC circuit breakers?

In DC power supply systems such as new energy power generation, rail transit, and data centers, DC circuit breakers are core equipment to ensure circuit safety. Their wiring methods directly affect system stability and fault protection efficiency. According to the application scenarios and load characteristics, DC circuit breakers are mainly divided into single-pole wiring, double-pole wiring, ring wiring, and mixed wiring. Each method has unique technical advantages and scope of application.

Single-pole wiring: a simple and efficient basic solution

Single-pole wiring is the most common DC circuit breaker connection method. It controls the positive or negative line through a single circuit breaker and is commonly used in low-voltage DC power distribution systems. In the string inverter of solar photovoltaic power generation, the single-pole circuit breaker is connected in series with the positive line. When an overcurrent or short-circuit fault occurs, the fault circuit can be quickly cut off. This method has a simple structure and low cost, but it cannot isolate the positive and negative poles at the same time. It needs to be used with a grounding protection device. It is suitable for scenarios that are sensitive to space and cost, such as home energy storage systems.

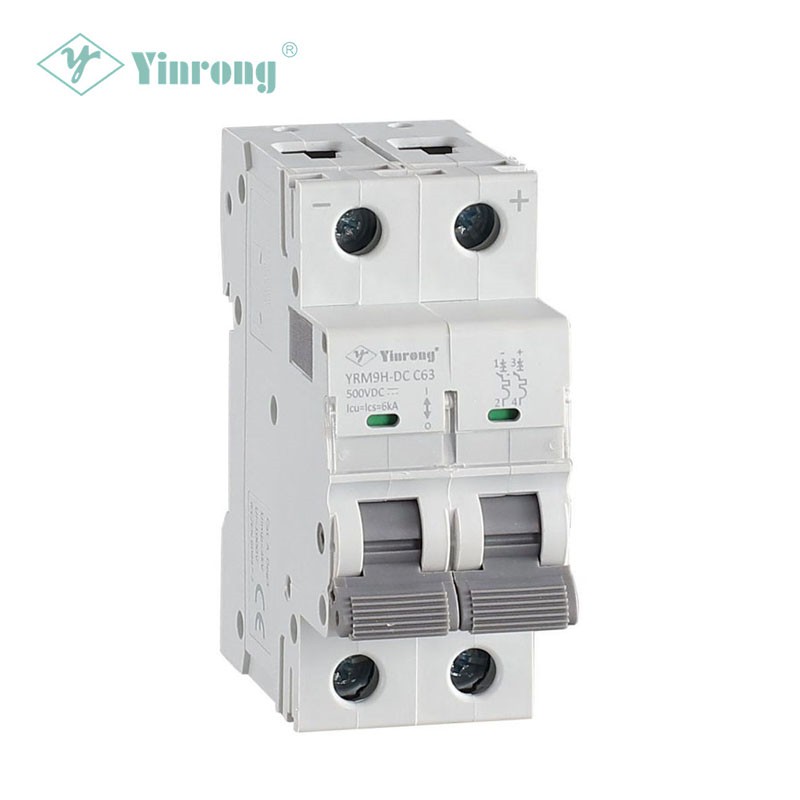

Bipolar wiring: high-safety full-pole protection

Bipolar wiring uses two circuit breakers to control the positive and negative lines respectively, which can realize the simultaneous cutting of positive and negative poles, significantly improving the fault isolation capability. In the traction power supply system of urban rail transit, the bipolar circuit breaker is connected in series with the positive and negative poles of the contact network. When a phase-to-phase short circuit or grounding fault occurs, it can quickly cut off the full-pole current to prevent the fault from spreading. Compared with the unipolar wiring, the bipolar solution is safer, but the equipment cost, and installation space requirements increase. It is suitable for high-voltage and large-capacity DC systems, such as high-voltage direct current transmission （HVDC） converter stations.

Ring wiring: Redundant design ensures continuous power supply

Ring wiring connects multiple DC circuit breakers into a closed-loop network and realizes power supply redundancy through segmented control. In the DC uninterruptible power supply (DC UPS) system of the data center, the ring wiring allows other circuit breakers to automatically close and maintain power supply when any circuit breaker fails, greatly improving the reliability of the system. This method needs to be combined with intelligent control strategies to monitor the status of each circuit breaker in real time and switch quickly. It is often used in scenarios with extremely high requirements for power supply continuity, but the wiring complexity and control cost are high.

Hybrid wiring: Customized adaptation to complex needs

For complex working conditions, hybrid wiring combines multiple methods to achieve functional complementarity. For example, in the ship DC power grid, the main power supply line uses bipolar wiring to ensure safety, while the secondary load branch uses single-pole wiring to reduce costs; some new energy microgrid projects combine ring wiring with bipolar circuit breakers to take into account redundant power supply and full-pole protection. Hybrid wiring needs to be customized according to system topology, load characteristics and protection requirements, which tests the comprehensive solution capabilities of the engineering team.

With the rapid development of the new energy industry, DC circuit breaker wiring technology is evolving towards integration and intelligence. The new generation of circuit breakers supports remote monitoring and fault prejudgment through built-in sensors and communication modules, and with optimized wiring solutions, it can further improve the safety and operation and maintenance efficiency of the DC system. When selecting and designing, enterprises need to comprehensively consider the system voltage level, load characteristics and economy, and choose the most suitable wiring solution to build a solid defense line for the stable operation of the electrical system.
