Why Are 2P 125A Miniature Circuit Breakers Essential for Reliable DC Electrical Protection

Abstract: As modern photovoltaic and communication systems increasingly depend on reliable DC power distribution, effective circuit protection has become essential. Galaxy Fuse provides the 2P 125A Miniature Circuit Breakers designed for DC applications requiring overload protection, short-circuit protection, and safe circuit isolation. Based on the YRM9-125DC platform, these breakers support demanding low-voltage DC systems while offering DIN-rail installation, a 10kA breaking capacity, and compliance with IEC 60947-2 and GB/T 14048.2.

Table of Contents

• What Are 2P 125A Miniature Circuit Breakers?
• How Do 2P 125A Miniature Circuit Breakers Work?
• What Are the Key Features?
• What Are the Technical Specifications?
• Where Are They Commonly Used?
• How Should You Select the Right DC Circuit Breaker?
• What Should You Consider During Installation?
• Frequently Asked Questions
• Conclusion

What Are 2P 125A Miniature Circuit Breakers?

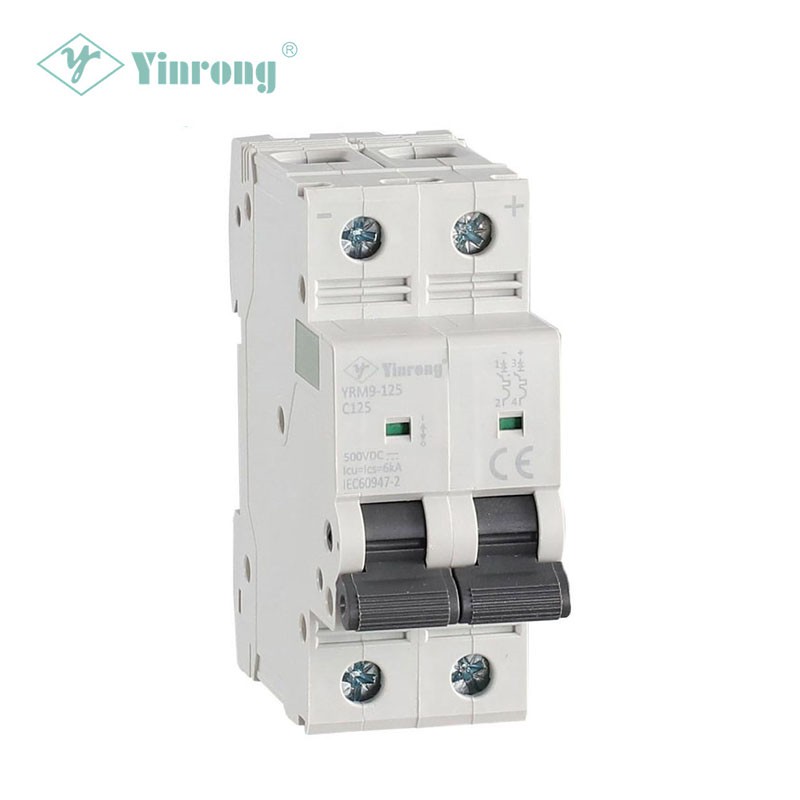

A 2P 125A Miniature Circuit Breaker is a DC protection device designed to interrupt abnormal current conditions and provide circuit isolation when required. The “2P” designation refers to a two-pole configuration, while 125A indicates the nominal current rating of the specific model.

Unlike a conventional fuse that normally requires replacement after operation, a circuit breaker can be reset after an appropriate fault investigation. This makes it particularly useful for electrical systems where serviceability, maintenance efficiency, and rapid restoration are important.

According to the product information provided by Galaxy Fuse, its YRM9-125DC series is intended for DC systems, particularly communication infrastructure and photovoltaic systems. The product family supports 1P, 2P, 3P, and 4P configurations, with rated currents from 80A to 125A and DC voltage configurations extending from 250VDC to 1000VDC depending on pole count.

For buyers comparing protection options, understanding the difference between a general-purpose AC breaker and a purpose-designed DC breaker is critical because DC fault interruption presents different electrical challenges. Selecting a breaker specifically rated for the system's DC voltage and fault conditions helps improve overall protection reliability.

How Do 2P 125A Miniature Circuit Breakers Work?

The primary purpose of a miniature circuit breaker is to disconnect a circuit when current exceeds an acceptable operating condition. In a DC installation, the breaker must be appropriately designed and rated for the system voltage and prospective fault current.

The protection principle can be considered through three important functions:

• Overload protection: The breaker responds when current remains above the permissible operating level for a sufficient period.
• Short-circuit protection: It rapidly interrupts substantially higher fault currents to reduce the risk of equipment damage.
• Isolation: The circuit can be disconnected during inspection, servicing, or maintenance.

The YRM9-125DC technical information specifies time-current testing at 1.05In, 1.3In, 8In, and 12In. For the stated test conditions, the higher fault-current levels are associated with rapid tripping behavior, supporting the breaker's short-circuit protection function.

What Are the Key Features of 2P 125A Miniature Circuit Breakers?

When selecting a DC miniature circuit breaker for industrial or renewable-energy applications, electrical performance should be evaluated together with installation convenience and long-term serviceability.

1. Two-Pole Protection

The 2P configuration provides a practical solution for DC distribution circuits where two poles need to be switched or isolated together. This can simplify system protection and maintenance arrangements.

2. High Current Rating

A 125A rating makes this class of breaker suitable for higher-current DC distribution applications where smaller MCB ratings would not provide sufficient capacity. The YRM9-125DC family covers 80A–125A rated-current options.

3. DC Voltage Capability

DC voltage capability is a key consideration when purchasing circuit protection equipment. The product specifications identify configurations from 250VDC to 1000VDC according to pole arrangement, making the family applicable to a range of DC architectures.

4. 10kA Breaking Capacity

The YRM9-125DC product information states a 10kA breaking capacity. This characteristic is important when evaluating whether a protective device can safely interrupt the prospective fault current at the intended installation point.

5. DIN-Rail Installation

DIN-rail mounting supports convenient installation in electrical distribution assemblies and control cabinets. It can also make replacement and maintenance more straightforward for system integrators and electrical contractors.

6. International Standard Compliance

The product documentation identifies compliance with IEC 60947-2 and GB/T 14048.2. Buyers should always verify the applicable certification and test documentation for the exact model and intended market before procurement.

What Are the Technical Specifications?

Technical specifications should be the starting point when determining whether a 2P 125A miniature circuit breaker is appropriate for a particular DC installation.

The specifications above are based on the manufacturer's published product information. Because voltage and current capability can depend on the exact pole configuration and installation conditions, engineering teams should confirm the final selection against the latest technical documentation before ordering.

Where Are They Commonly Used?

The combination of DC protection, high current capacity, and compact DIN-rail installation makes this type of breaker suitable for several electrical applications.

Solar Photovoltaic Systems

Photovoltaic installations contain multiple DC circuits between solar modules, combiner equipment, controllers, batteries, and inverters. Properly selected DC circuit breakers can provide protection and isolation at appropriate points in the distribution architecture.

Communication Systems

Telecommunication and communication infrastructure often relies on DC power distribution. Reliable circuit protection helps separate faulty branches and supports maintenance without unnecessarily shutting down unaffected circuits.

DC Distribution Panels

Industrial control systems and DC distribution cabinets can use appropriately rated miniature circuit breakers to protect individual outgoing circuits while maintaining a structured protection strategy.

Energy Storage and Related DC Equipment

Where a DC power system requires higher-current branch protection, an appropriately rated circuit breaker can form part of the overall protection architecture. However, battery energy-storage applications require careful evaluation of fault current, voltage, interruption capability, coordination, and applicable standards.

How Should You Select the Right DC Circuit Breaker?

Choosing a 2P 125A miniature circuit breaker should never be based on amperage alone. A reliable selection process considers the entire electrical environment.

1. Confirm the system voltage. The breaker's DC voltage rating must meet or exceed the actual system requirement.
2. Calculate the design current. Select a rated current appropriate for the continuous load and applicable electrical design requirements.
3. Determine prospective short-circuit current. The breaking capacity must be suitable for the fault level at the installation point.
4. Check the pole configuration. Confirm whether 1P, 2P, 3P, or 4P protection is required by the system architecture.
5. Verify conductor compatibility. Cable size, terminals, connection method, and installation conditions should be compatible with the selected breaker.
6. Review standards and certifications. Ensure the product documentation meets the regulations and customer requirements applicable to the target market.
7. Consider installation and maintenance. DIN-rail mounting and clear identification can improve panel organization and service efficiency.

For procurement teams searching for a China manufacturer or supplier, technical documentation should be evaluated alongside manufacturing capability, quality-control processes, certification, delivery capability, and after-sales support.

What Should You Consider During Installation?

Correct installation is just as important as selecting the correct breaker. A high-quality circuit protection device cannot compensate for incorrect wiring, insufficient conductor sizing, or an unsuitable system design.

• Follow the manufacturer's wiring diagram and installation instructions.
• Confirm DC polarity and terminal identification before energizing the circuit.
• Use conductors and terminals appropriate for the rated current and installation environment.
• Check tightening torque according to the applicable technical documentation.
• Verify the breaker voltage and breaking capacity against the actual system conditions.
• Inspect connections periodically for signs of overheating, looseness, or mechanical damage.
• Only qualified electrical personnel should perform installation, testing, troubleshooting, or maintenance.

The published YRM9-125DC information also identifies a maximum wire connection of 25mm² and DIN-rail installation, giving panel designers useful information when planning enclosure layouts.

Frequently Asked Questions

What does 2P mean on a 125A miniature circuit breaker?

“2P” means the breaker has two poles. In a DC protection system, the exact switching and isolation arrangement should be determined according to the electrical architecture and applicable regulations.

Is a 2P 125A MCB suitable for solar PV systems?

It can be used in suitable DC photovoltaic applications when its voltage rating, current rating, breaking capacity, pole configuration, and installation requirements match the system design. The YRM9-125DC is specifically identified for solar photovoltaic and communication applications.

What is the breaking capacity of the YRM9-125DC?

The published product information specifies a 10kA breaking capacity. The actual suitability must still be evaluated against the prospective short-circuit current at the installation point.

What standards does the product comply with?

The manufacturer identifies IEC 60947-2 and GB/T 14048.2 as applicable standards for the product. Buyers should request current compliance and certification documentation for their specific purchasing requirements.

What is the mechanical lifespan?

The published specifications state a mechanical lifespan of 20,000 cycles. Actual service life can depend on operating conditions, switching frequency, environmental conditions, and application requirements.

Conclusion

Reliable DC circuit protection requires more than simply choosing a breaker with the correct current rating. A suitable 2P 125A Miniature Circuit Breaker should combine appropriate DC voltage capability, breaking capacity, pole configuration, installation compatibility, and recognized standards. The YRM9-125DC platform from Galaxy Fuse is designed for applications including photovoltaic and communication systems, with published specifications including 80–125A rated current, up to 10kA breaking capacity, DIN-rail installation, and compliance with IEC 60947-2 and GB/T 14048.2.

If you are sourcing dependable DC circuit protection for a photovoltaic project, communication system, distribution panel, or other industrial application, contact us to discuss your voltage, current, pole configuration, installation requirements, and project specifications. Galaxy Fuse can provide product information and technical support to help you identify a suitable circuit protection solution.
