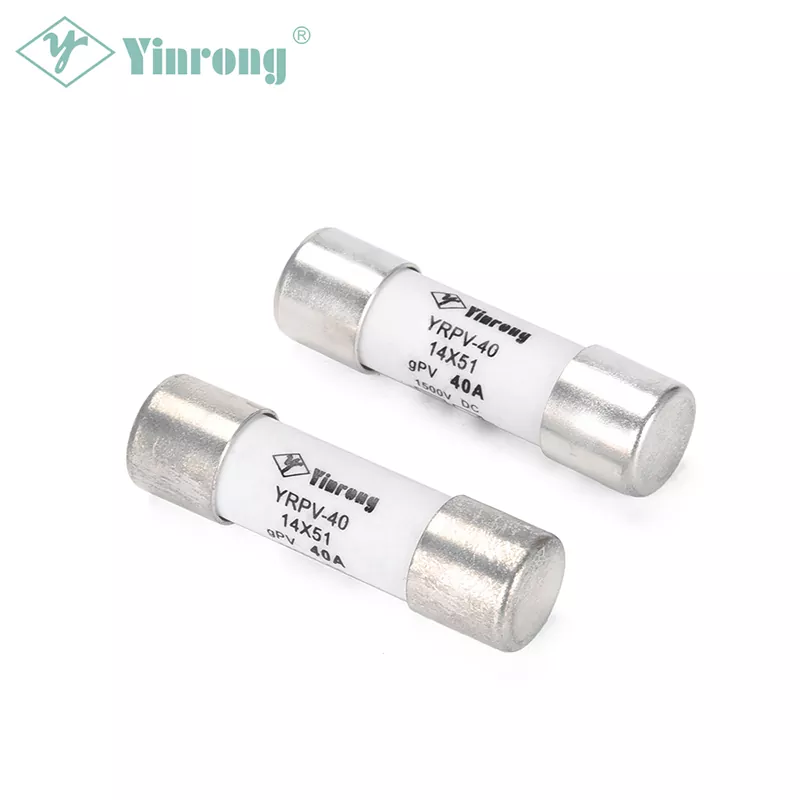

14×51 1500VDC gPV Fuse
  • 14×51 1500VDC gPV Fuse14×51 1500VDC gPV Fuse
  • 14×51 1500VDC gPV Fuse14×51 1500VDC gPV Fuse
  • 14×51 1500VDC gPV Fuse14×51 1500VDC gPV Fuse
  • 14×51 1500VDC gPV Fuse14×51 1500VDC gPV Fuse
  • 14×51 1500VDC gPV Fuse14×51 1500VDC gPV Fuse

14×51 1500VDC gPV Fuse

As an excellent Fuse supplier in China, YRPV-40 14×51 1500VDC gPV Fuse belongs to the photovoltaic series products of Yinrong. YRPV-40 14×51 1500VDC gPV Fuse is used to break the circuit overload and short circuit current generated by the photovoltaic series inverter and other current feedback cables that may be generated in the solar photovoltaic system, thus protecting the overall photovoltaic photovoltaic panel. YRPV-40 14×51 1500VDC gPV Fuse with fuse holder is optional for overload and short circuit protection of electrical components in any other DC circuit.

Send Inquiry

Product Description

Yinrong is a leading China 14×51 1500VDC gPV Fuse manufacturers. As an exceptional supplier of fuses in China, Zhejiang Galaxy Fuse Co., LTD offers the YRPV-40 14×51 1500VDC gPV Fuse as part of its photovoltaic series products. The YRPV-40 14×51 1500VDC gPV Fuse is specifically designed to interrupt circuit overload and short circuit current that may be generated by the photovoltaic series inverter and other current feedback cables within the solar photovoltaic system. This ensures the protection of the entire photovoltaic panel system.

Additionally, the YRPV-40 14×51 1500VDC gPV Fuse with fuse holder can be used optionally for overload and short circuit protection of electrical components in any other DC circuit. This fuse is highly reliable and efficient, making it an excellent choice for use in various industrial and commercial applications.

Rated Voltage

1000VDC/1500VDC

Rated Current

10-40A

Breaking Capacity

25kA

Fuse Size

14×51mm

Operating Class

gPV

Pole

Support 1P/2P/3P/4P Fuse Holder

Standard/Compliances

-IEC60269-6

-GB/T13539.6

-EN60947-3

Certifications

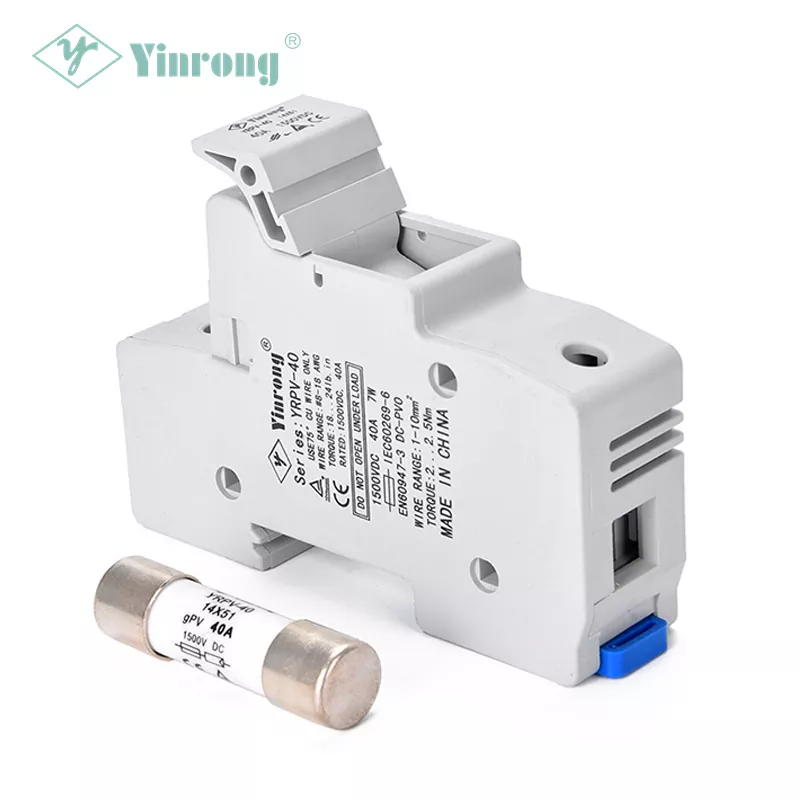

Compatible Fuse holder/Accessories

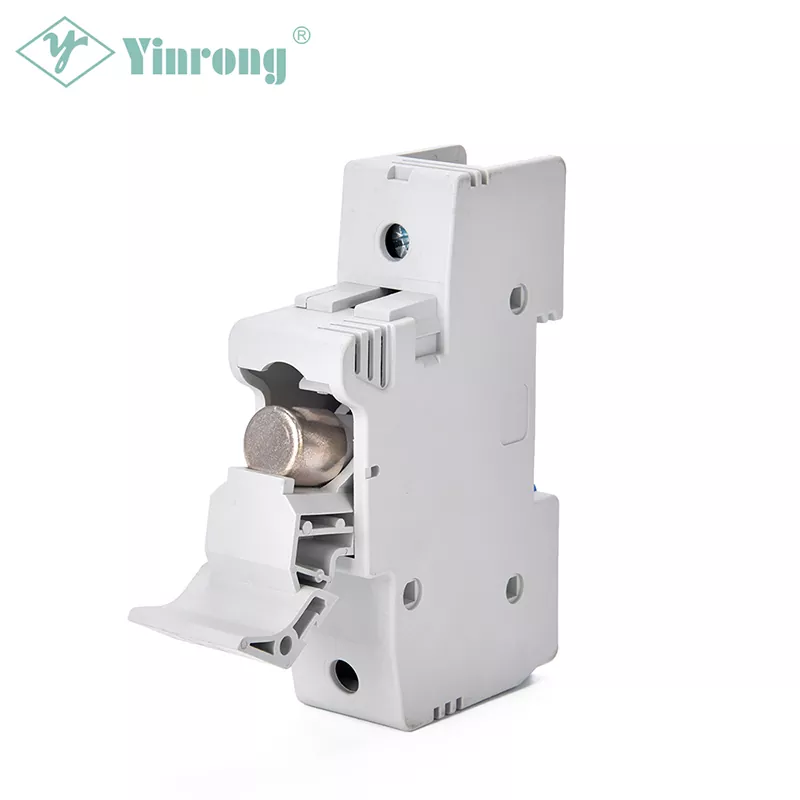

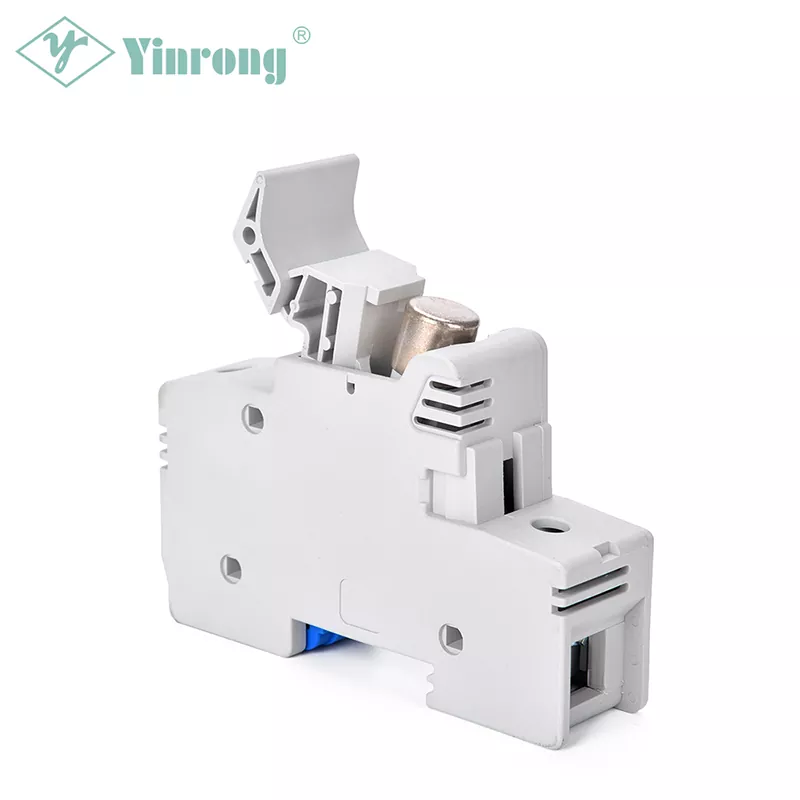

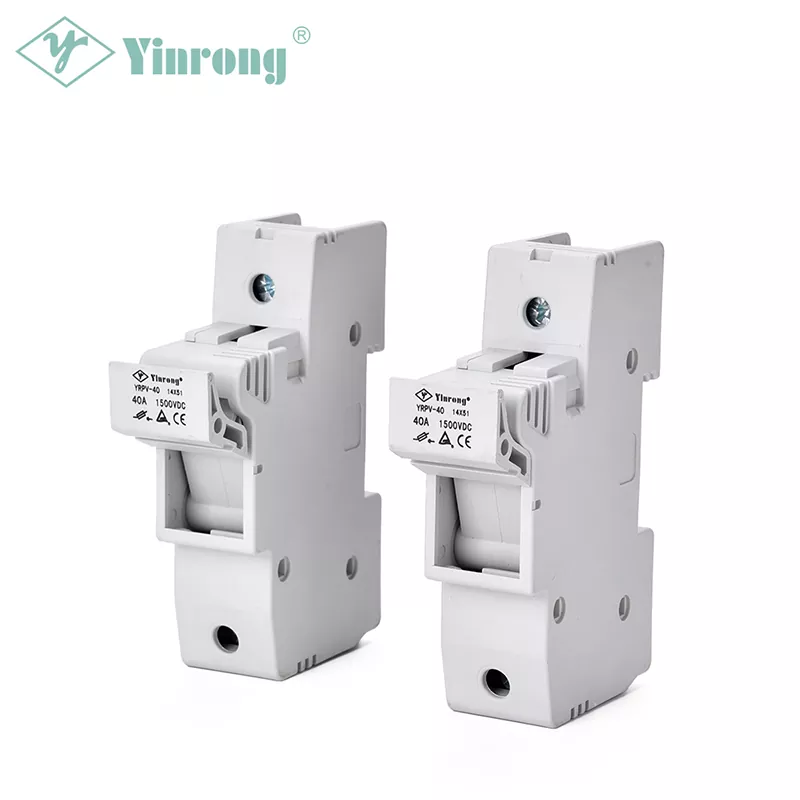

YRPV-40 Fuse holder

Applications of 14×51 1500VDC gPV Fuse

- DC Photovoltaic Combiner Box

-PV string/array level protection

-In-line PV module protection

-Battery charge controllers

Country of Origin

Zhejiang,China

Prameters

Model/Size

Rated Voltage (V)

Rated Current (A)

Breaking Capacity (kA)

YRPV-40 14×51 Fuse Link

1000VDC/1500VDC

10A-40A

1500VDC TUV&CE:25kA

YRPV-40 Fuse Holder

1000VDC/1500VDC

40A

/

Time-Current Characteristic

Standard:IEC60269-6 & GB/T 13539.6

113% In

145% In

> 1h fusing

< 1h  fusing



Note : Subsequent standard updates will not afect the performance and noral use of the product.

Time-Current Curve
