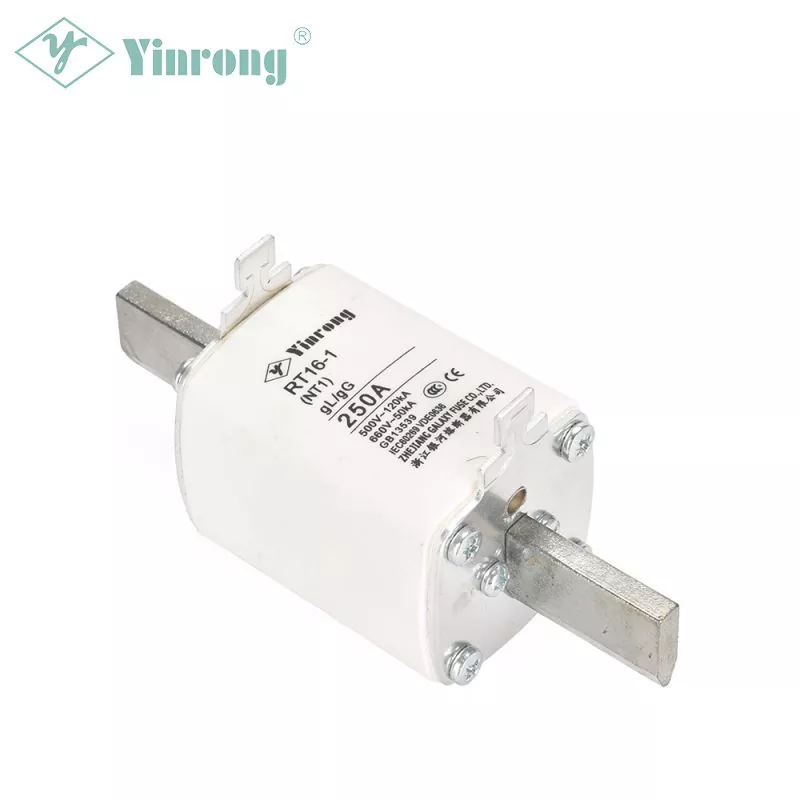

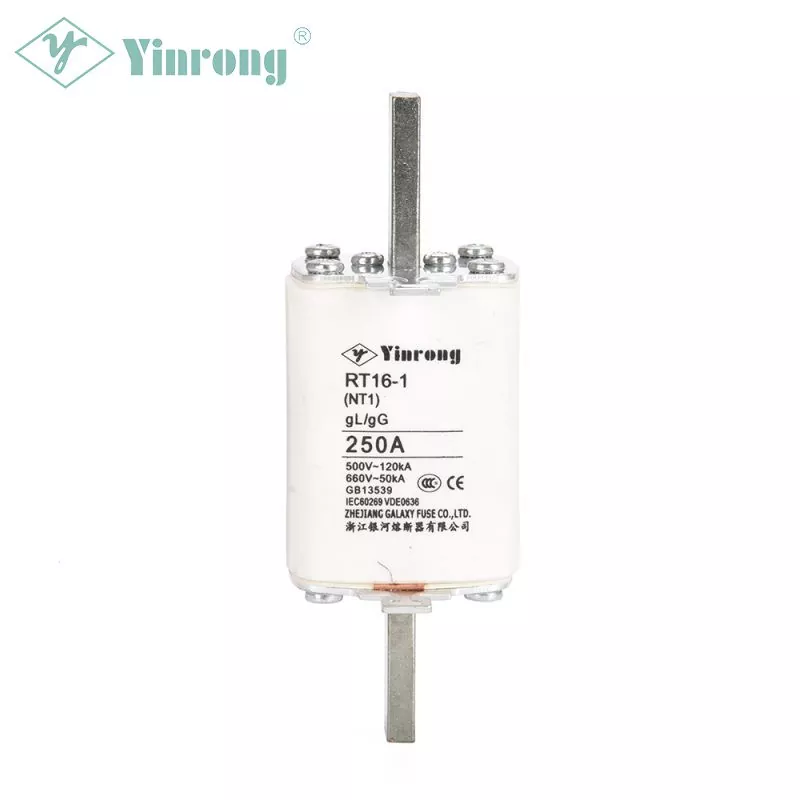

250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse
  • 250A NT1 gG Knife-Blade HRC Fuse250A NT1 gG Knife-Blade HRC Fuse

250A NT1 gG Knife-Blade HRC Fuse

Yinrong is a leading manufacturer and supplier of 250A NT1 gG Knife-Blade HRC Fuses in China. The 250A NT1 gG Knife-Blade HRC Fuse is designed to protect low voltage electrical systems under low prospective short circuit conditions. The 250A NT1 gG Knife-Blade HRC Fuse meets various operating categories such as gG/gL, aM, and aR. The 250A NT1 gG Knife-Blade HRC Fuses have blade terminals and standard size specifications and are recognized worldwide. The 250A NT1 gG Knife-Blade HRC Fuses are available in a wide range of rated current from 32A to 250A for a variety of applications including motors, transformers, low voltage networks, switchboards and control circuits.

Send Inquiry

Product Description

Yinrong is a renowned manufacturer and supplier based in China, specializing in the production of 250A NT1 gG Knife-Blade HRC Fuses. These 250A NT1 gG Knife-Blade HRC Fuses are specifically designed to protect low voltage electrical systems under low prospective short circuit conditions. The 250A NT1 gG Knife-Blade HRC Fuses conform to various operating categories such as gG/gL, aM, and aR, ensuring reliable protection. These fuses have blade terminals and standardized size specifications, making them widely accepted in global markets. They are available in a broad range of amperage ratings from 32A to 250A, making them suitable for diverse applications such as motors, transformers, low voltage networks, electric cabinet, and control circuits.

Rated Voltage

500V/690V

Rated Current

32-250A

Breaking Capacity

500V-120KA/690V-50KA

Operating Class

gG/gL;aR;aM

Pole

Support 1P/3P Fuse Holder

Standard/Compliance

-IEC 60269-2

-GB/T13539.2

Certifications

Compatible Fuse Holder

RT16-1/NT1

Optional Accessory

NH Fuse Handle(Extractor)

Applications of 250A NT1 gG Knife-Blade HRC Fuse

- General industrial application

- Motor drive

- LV networks

- Electric cabinet

- Solid state relays

- Semiconductor devices

-Power rectifier

- Uninterruptible Power System

Country of Origin

People’s Republic of China

Parameters

Model/Size

Rated Voltage (V)

Rated Current (A)

NH1

500V/690V

32,40,50,63,80,100,125,160,200,224,250


Overall Dimension

A

D

E

H

H1

H2

135

68

48

60

20

48



Model

Rated Voltage

Rated Current

Overall Dimension

A

B

F

H

YR:Sist201

690V

250A

208

176

32

82

Sizes



Curve Characteristic
