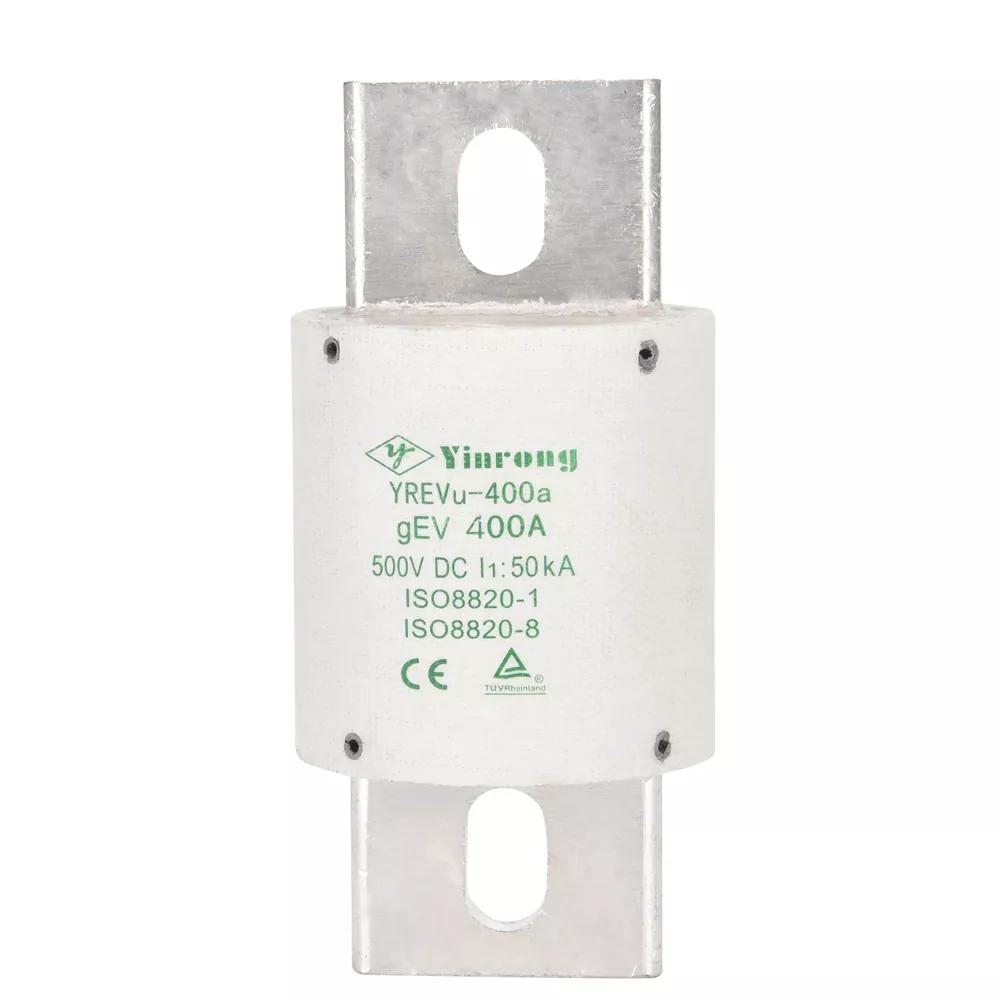

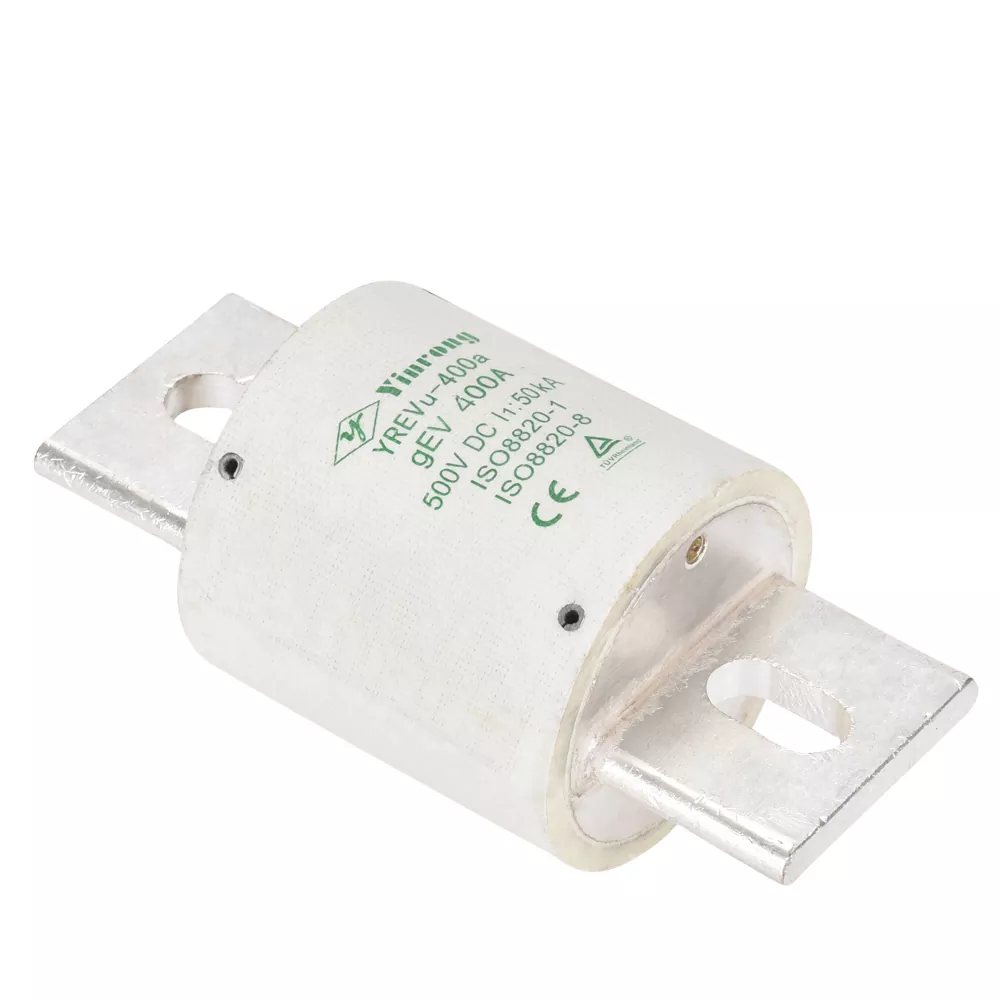

500VDC 400A EV and HEV Charger Fuse

China fuse factory Galaxy Fuse (Yinrong) 500VDC 400A EV and HEV Charger Fuses are generally engineered to offer optimum auxiliary protection and high-performance protection in electrical systems and hybrid electrical vehicles, up to 500VDC in amperes from 225-400A. The YREVu-400A was also specifically designed from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Galaxy Fuse (Yinrong), a Chinese manufacturer of fuses, provides 500VDC 400A EV and HEV Charger Fuses that are designed to offer high-performance protection and auxiliary protection in electrical systems and hybrid electric vehicles. These fuses are suitable for amperes ranging from 225A to 400A and can handle voltages up to 500VDC. In particular, the YREVu-400Aa fuse was designed from scratch to meet the strict vibration standards of the automotive industry, specifically for electric vehicles.

Standard/Compliance

-IEC 60269-7

-GB/T13539.4

- ISO8820-1

- ISO8820-8

- UL248-1

Certifications

Class of Operation

gEV

Applications

- HEV/EV

- Power battery pack protection

- Power battery charging

- EV system high voltage distribution box PDU/BDU branch circuit protection

- EV system high voltage maintenance switch MSD

- Energy storage system

Country of Origin

Zhejiang,China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity(KA)	Overall Dimension
A	B1	B2	C	φd	E	F	GxH
YREVu-400a	500VDC	225,250,300,350,400	50KA	113.5	90.9	76	56	57.6	6	39.7	10.5×18

Model/Size

Rated Voltage

(V)

Rated Current

(A)

Breaking Capacity(KA)

Overall Dimension

φd

GxH

YREVu-400a

500VDC

225,250,300,350,400

50KA

113.5

90.9

57.6

39.7

10.5×18

Sizes
