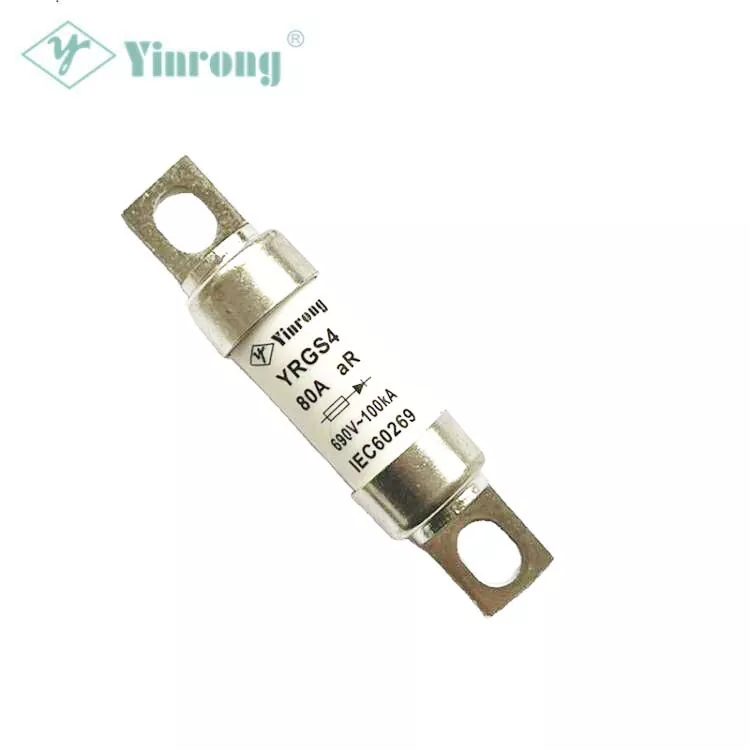

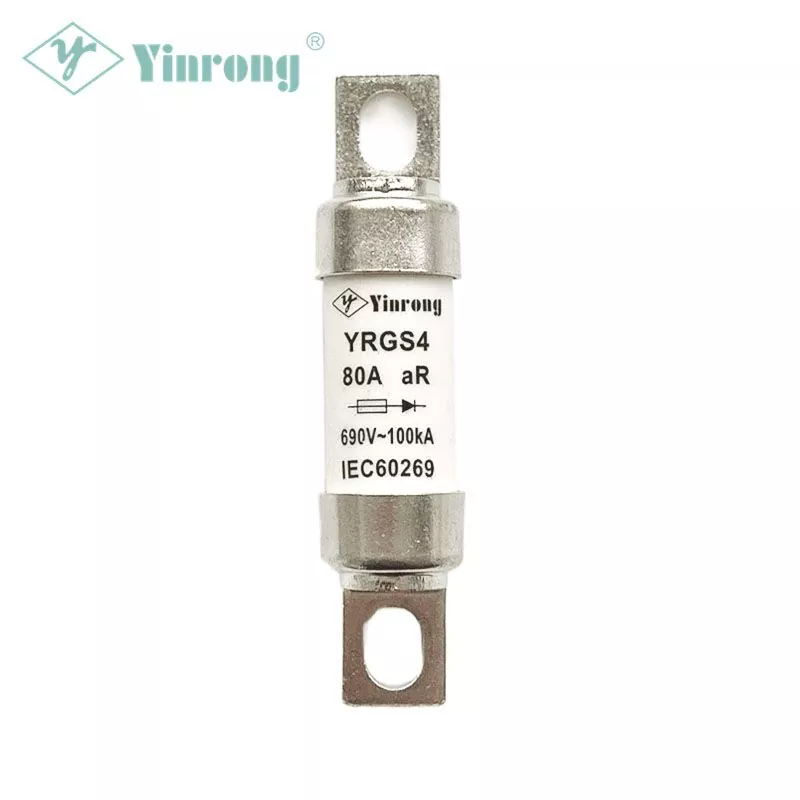

690VAC 100A Bolt Connected High-Speed Fuse

Galaxy Fuse (Yinrong), a high speed fuse manufacturer in China, offers a specialized product known as the 690VAC 100A Bolt Connected High-Speed Fuse that is designed to protect semiconductor devices. The 690VAC 100A Bolt Connected High-Speed Fuse is designed specifically for short-circuit protection and has an amperage rating ranging from 10A to 100A under a rated voltage of 690VAC/550VDC, making it suitable for most semiconductor devices. The 690VAC 100A Bolt Connected High-Speed Fuse complies with GB13539.4 and IEC60269-4, which ensures high quality and reliability.Furthermore, with its powerful R&D capacity, Galaxy Fuse (Yinrong) also offers a wide range of high speed fuses to meet the needs of the emerging energy storage industry.

Standard/Compliance

-IEC 60269-4

-GB/T13539.4

Class of Operation

aR

Features&Benefits

- 690VAC /550VDC electrical system available

- 10-100A ampere ratings available

- High breaking capacity

- BS88 style bolted tag mounting

- Provides various amperage in compact size

- Conforms to IEC standards for global acceptance

- Low power loss and temperature rise for energy efficiency

Applications of 690VAC 100A Bolt Connected High-Speed Fuse

- Power converters/rectifiers

- AC/DC common systems

- Frequency converters

- Battery energy storage systems

- Regenerative drives

- Other semiconductors

Country of Origin

People’s Republic of China

Parameters

Sizes

Time-Current Characteristic

Cut-off Current Characteristic
