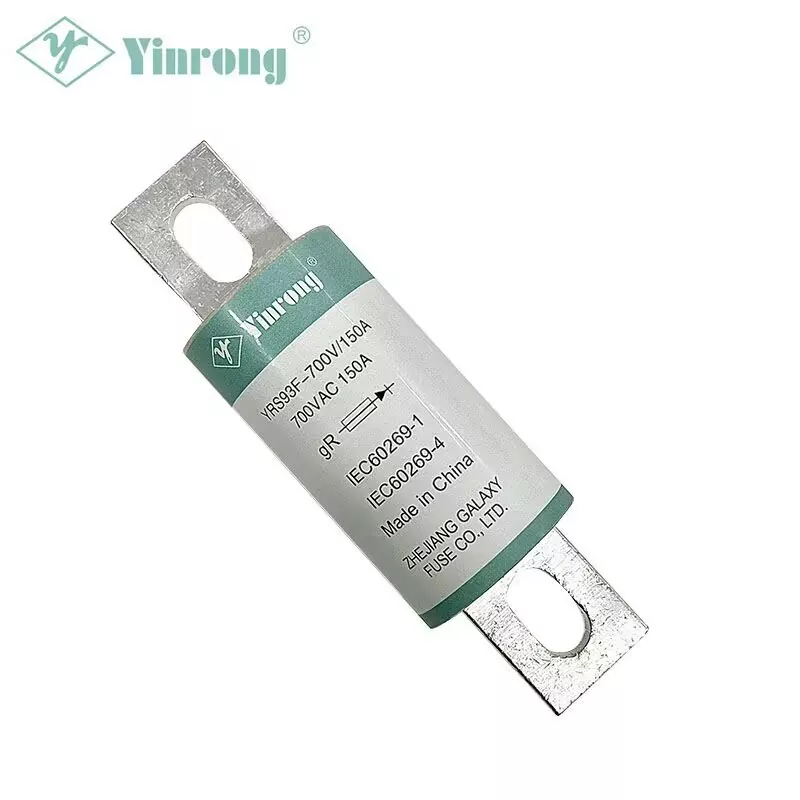

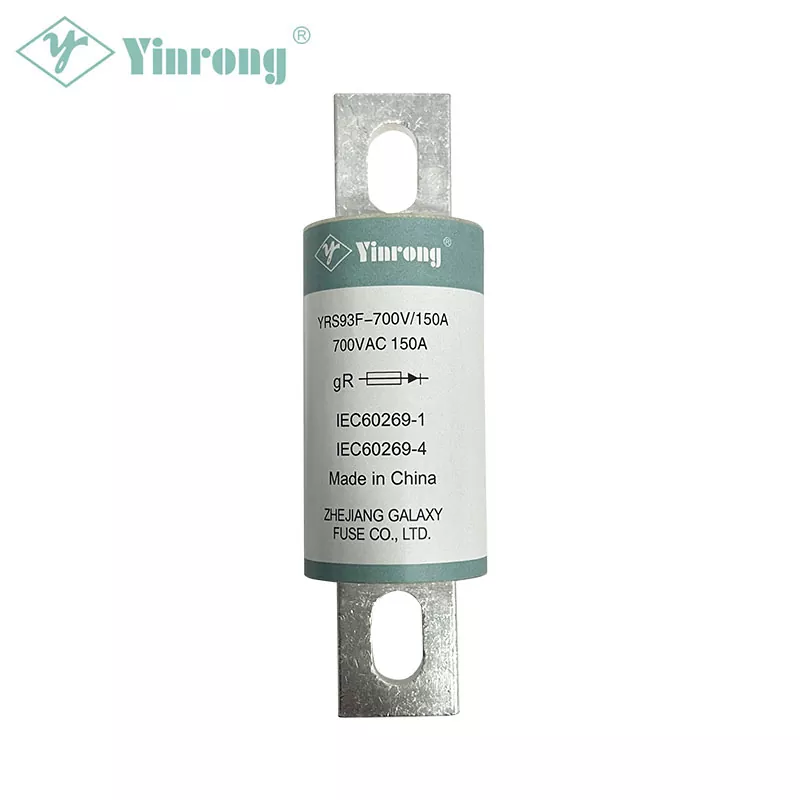

700VAC 150A Stud-Mount High speed Fuse

Galaxy Fuse (Yinrong), a reputable high speed fuse manufacturer based in China, provides various North American style round fuses, among which is the 700VAC 150A Stud-Mount High speed Fuse.The 700VAC 150A Stud-Mount High Speed Fuse is specifically engineered to protect semiconductor devices against overloading and short-circuiting.700VAC 150A Stud-Mount High Speed Fuse comes with an amperage rating ranging from 125A to 200A, making it an ideal choice for short-circuit and backup protection of different equipment and devices, including inverters, batteries,motors,capacitors,wires,and other semiconductor equipment. Moreover, the 700VAC 150A Stud-Mount High Speed Fuse is designed to operate under a rated voltage of 700V (AC/DC) and meets the standards of both GB13539.4 and IEC60269-4.

Send Inquiry

Product Description

Galaxy Fuse (Yinrong), a Chinese high speed fuse manufacturer, provides North American style round fuses that include the 700VAC 150A Stud-Mount High Speed Fuse. This 700VAC 150A Stud-Mount High Speed Fuse is designed specifically to safeguard semiconductor devices from overloading and short-circuiting. The 700VAC 150A Stud-Mount High Speed Fuse has an amperage rating ranging from 125A to 200A, making it applicable for short-circuit and backup protection of various equipment and devices such as frequency converters, rectifiers, inverters,batteries, motors, capacitors, wires, and other semiconductor equipment. The 700VAC 150A Stud-Mount High speed Fuse is designed to operate under a rated voltage of 700V (AC/DC) and complies with GB13539.4 and IEC60269-4 standards, ensuring high-quality performance and reliability.

Standard/Compliance

-IEC 60269-4

-GB/T13539.4

Class of Operation

gR

Features&Benefits

- 700V(AC /DC)electrical system available

- 125-200A ampere ratings available

- Traditional North American Bolted Style dimensions

- High breaking capacity

- Direct bus-bar mount and stud mounting

- Superior cycling capability

- Conforms to IEC standards for global acceptance

- Low power loss and temperature rise for energy efficiency

Applications of 700VAC 150A Stud-Mount High speed Fuse

- Power conversion devices (inverter, rectifiers)

- Power Supplies

- UPS

- Variable Speed Drives

- Control Circuits

- Soft Starters

- Other semiconductors

Country of Origin

People’s Republic of China

Conventional Fusing and Non-Fusing

Rated Current (A)

Conventional Time (h)

Conventional Current

“gR”

Inf

If

In≤63

63≤In≤160

160≤In≤400

400<In

1

2

3

4

1.13In

1.6In

Note:In is the rated current of the fuse;Inf is the conventional non-fusing current;If is the conventional fusing current

Sizes

Time-Current Characteristic

Cut-off Current Characteristic
