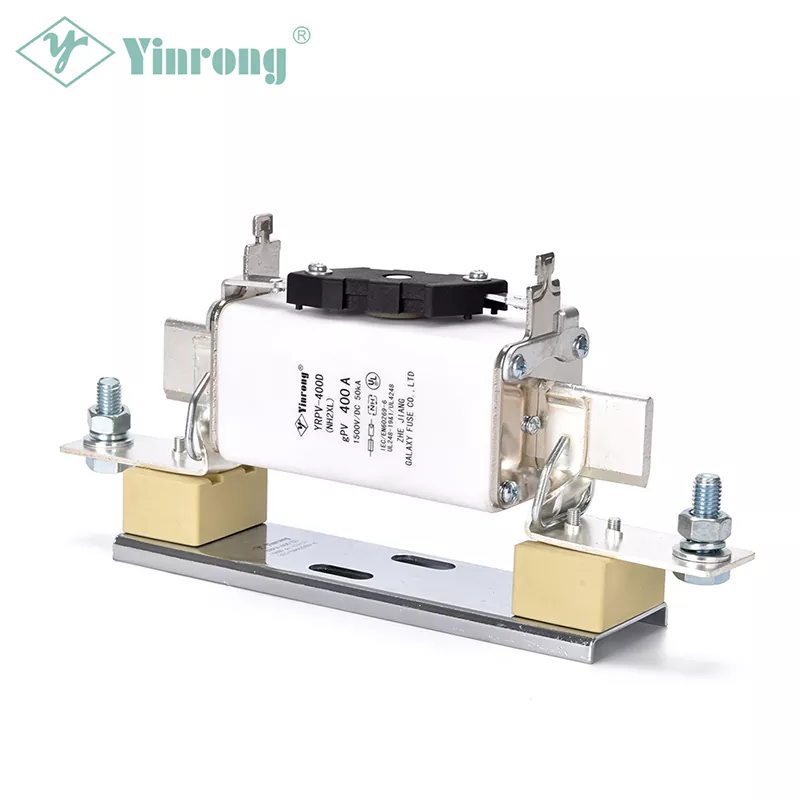

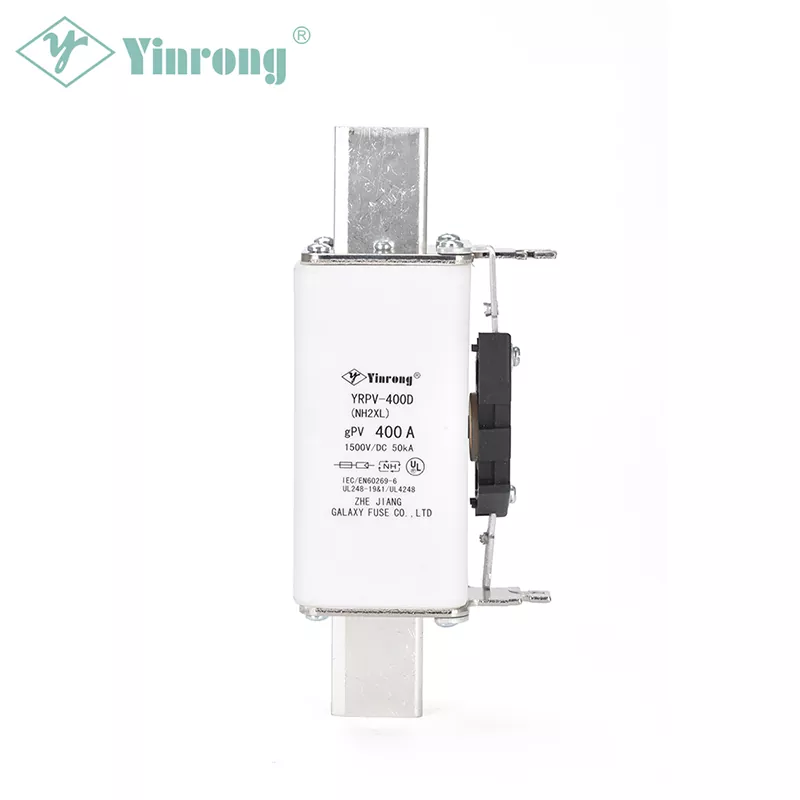

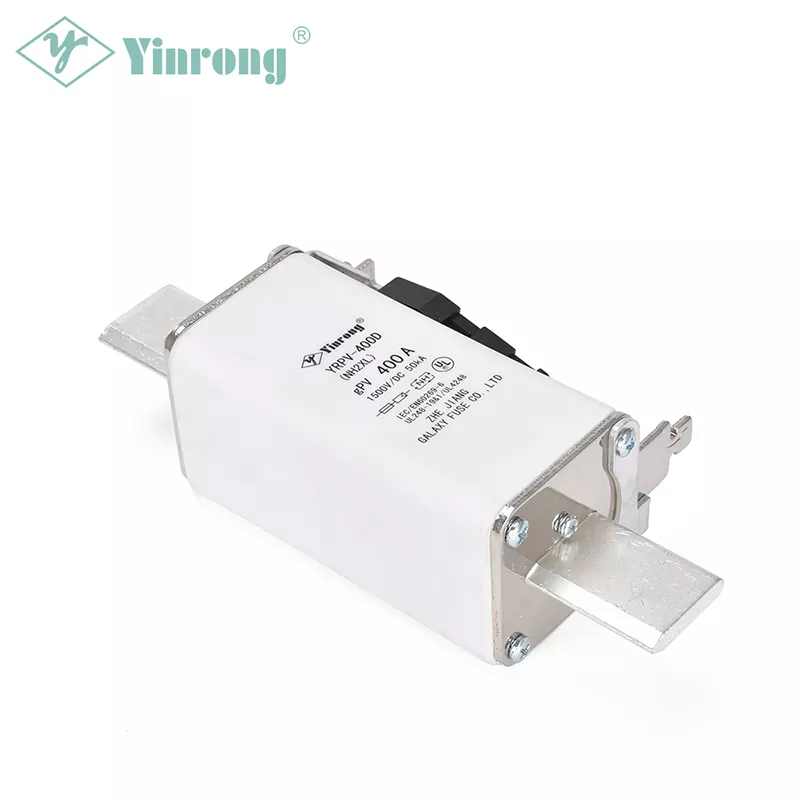

NH2 XL 1500VDC gPV Fuse
  • NH2 XL 1500VDC gPV FuseNH2 XL 1500VDC gPV Fuse
  • NH2 XL 1500VDC gPV FuseNH2 XL 1500VDC gPV Fuse
  • NH2 XL 1500VDC gPV FuseNH2 XL 1500VDC gPV Fuse
  • NH2 XL 1500VDC gPV FuseNH2 XL 1500VDC gPV Fuse

NH2 XL 1500VDC gPV Fuse

Find a huge selection of NH2 XL 1500VDC gPV Fuse from China at Yinrong. Yinrong NH2 XL 1500VDC gPV Fuse is a safety protection solution specifically designed for photovoltaic installations. It can be used in sub-array, array, or inverter DC input of solar power systems. The fuse range includes NH0, NH2XL, and NH3L fuse links with rated currents ranging from 40A to 630A. These fuses are rated for a voltage of 1500V DC and provide protection against overloads and short-circuits, conforming to the gPV class as per IEC 60269 and GB/T 13539.6 standards. The NH2 XL 1500VDC gPV Fuse is constructed with a ceramic body that can withstand high internal pressure and thermal shock.

Send Inquiry

Product Description

Yinrong is NH2 XL 1500VDC gPV Fuse manufacturers and suppliers in China who can wholesale NH2 XL 1500VDC gPV Fuse. Yinrong NH2 XL 1500VDC gPV Fusee plays a critical role in ensuring the safety and reliable operation of photovoltaic installations. Specifically designed for high-voltage DC applications, this fuse provides essential protection against overloads and short circuits in sub-arrays, arrays, and inverter DC inputs. With its ceramic body, the NH2 XL 1500VDC gPV Fuse can withstand internal pressure and thermal shock, making it highly durable and reliable.

Rated Voltage

1000VDC/1500VDC

Rated Current

125A-400A

Breaking Capacity

50kA

Operating Class

gPV

Standard/Compliances

-IEC60269-6

-GB/T 13539.6

Certifications



Compatible Fuse holder/Accessories

YRPV-400D Fuse holder

-Striker

-Microswitch

Applications of NH2 XL 1500VDC gPV Fuse

- DC Photovoltaic Combiner Box

-PV string/array level protection

-In-line PV module protection

-Battery charge controllers

Country of Origin

Zhejiang,China

Prameters

Model/Size

Rated Voltage (V)

Rated Current (A)

Breaking Capacity (kA)

YRPV-400D Fuse Link

1000VDC/1500VDC

125A-400A

1000VDC TUV&CE:30kA

1500VDC

UL:50kA

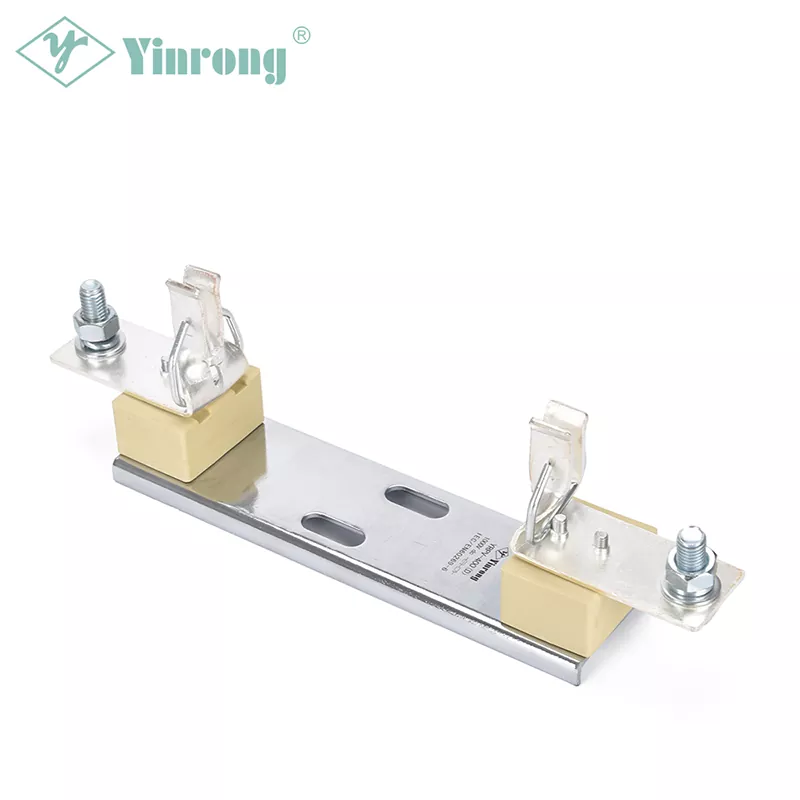

YRPV-400D Fuse Holder

1000VDC/1500VDC

400A

/

Time-Current Curve

Hot Tags: NH2 XL 1500VDC gPV Fuse, China, Manufacturers, Suppliers, Factory, In Stock, Available, Brands, Quality, Durable, Fast-delivery, CE, TUV, UL
