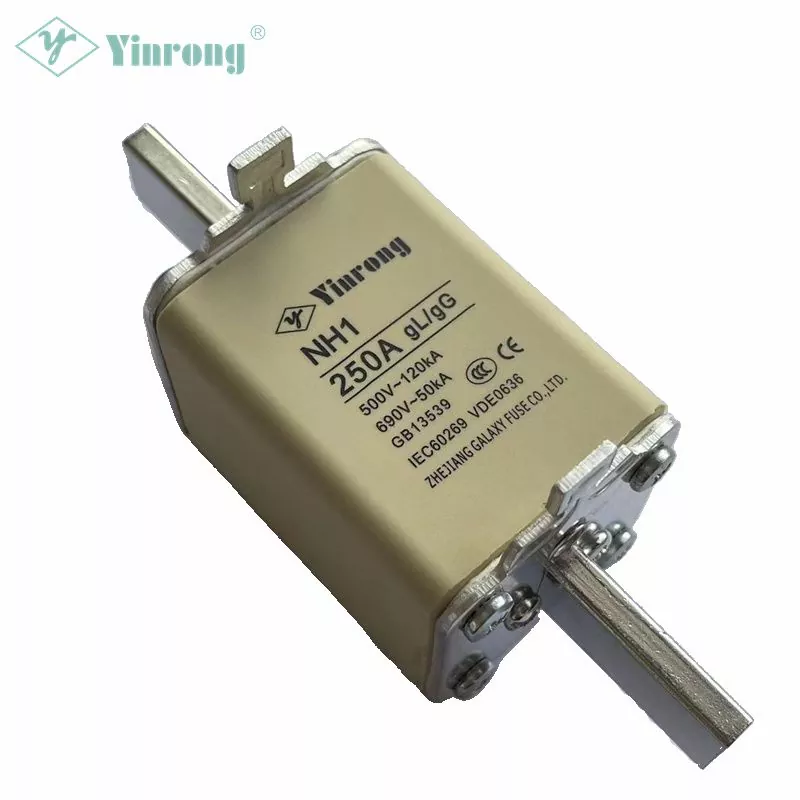

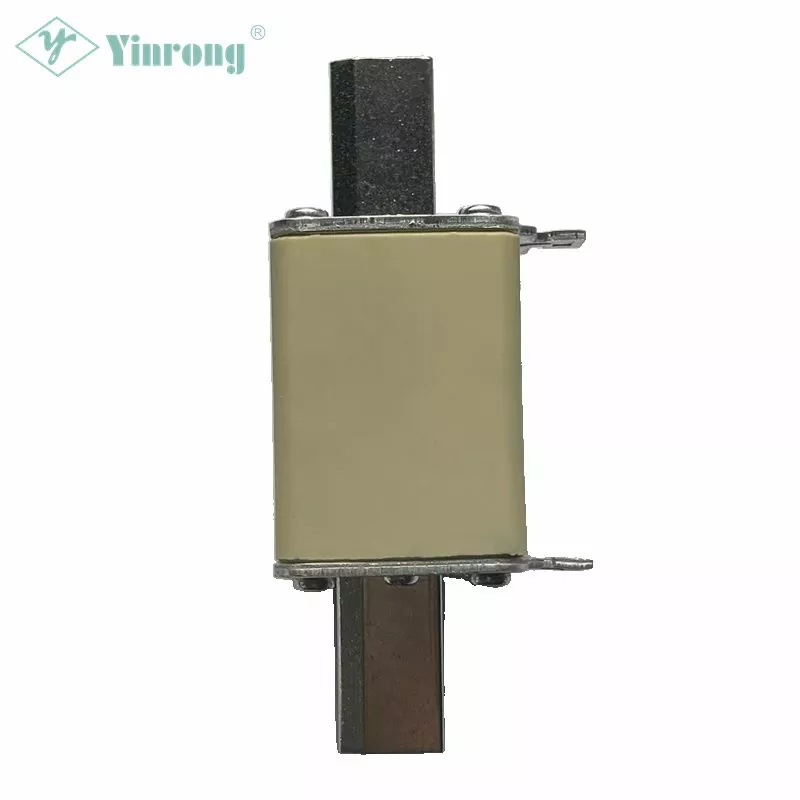

250A NH1 gG Knife-Blade HRC Fuse
  • 250A NH1 gG Knife-Blade HRC Fuse250A NH1 gG Knife-Blade HRC Fuse
  • 250A NH1 gG Knife-Blade HRC Fuse250A NH1 gG Knife-Blade HRC Fuse
  • 250A NH1 gG Knife-Blade HRC Fuse250A NH1 gG Knife-Blade HRC Fuse
  • 250A NH1 gG Knife-Blade HRC Fuse250A NH1 gG Knife-Blade HRC Fuse
  • 250A NH1 gG Knife-Blade HRC Fuse250A NH1 gG Knife-Blade HRC Fuse

250A NH1 gG Knife-Blade HRC Fuse

Yinrong is a leading manufacturer and supplier of 250A NH1 gG Knife-Blade HRC Fuse in China. The 250A NH1 gG Knife-Blade HRC Fuse is designed to protect low voltage electrical systems in cases of low expected short-circuit scenarios.The 250A NH1 gG Knife-Blade HRC Fuse conforms to various operating classes such as gG/gL, aM, and aR. With blade terminals and standard size specifications, the 250A NH1 gG Knife-Blade HRC Fuse is globally accepted. The 250A NH1 gG Knife-Blade HRC Fuse is available in a broad range of amperage ratings from 32A to 250A, making it suitable for diverse applications such as motors, transformers, LV-networks, distribution boards, and control circuits.

Send Inquiry

Product Description

Yinrong is a top fuse supplier and manufacturer of 250A NH1 gG Knife-Blade HRC Fuse in Zhejiang, China.The 250A NH1 gG Knife-Blade HRC Fuse is specifically intended to provide reliable protection for low voltage electrical systems,especially in cases where short-circuit scenarios are anticipated to be low in severity. The 250A NH1 gG Knife-Blade HRC Fuse conforms to various operating classes, including gG/gL, aM, and aR,ensuring versatility in its applications. Featuring convenient blade terminals and adhering to standard size specifications, the 250A NH1 gG Knife-Blade HRC Fuse is widely recognized and accepted in global markets. With a broad range of amperage ratings from 32A to 250A, it caters to diverse needs in applications such as motors, transformers, LV-networks, distribution boards, and control circuits. Elevate your electrical system protection with the reliable performance of the 250A NH1 gG Knife-Blade HRC Fuse, built to meet demanding requirements and provide peace of mind in a wide range of applications.

Rated Voltage

500V/690V

Rated Current

32-250A

Breaking Capacity

500V-120KA/690V-50KA

Operating Class

gG/gL;aR;aM

Pole

Support 1P/3P Fuse Holder

Standard/Compliance

-IEC 60269-2

-GB/T13539.2

Certifications

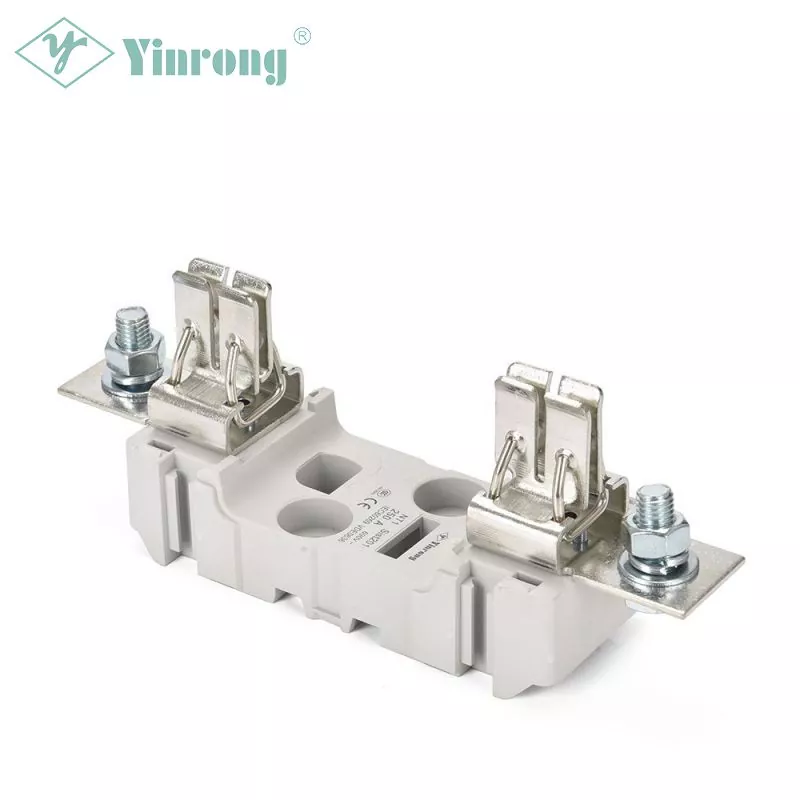

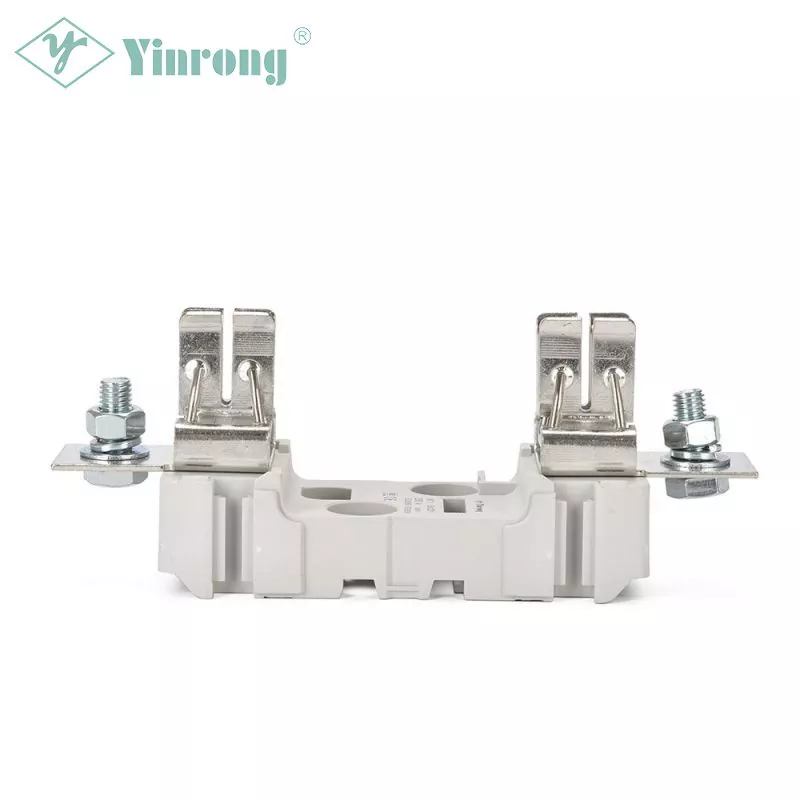

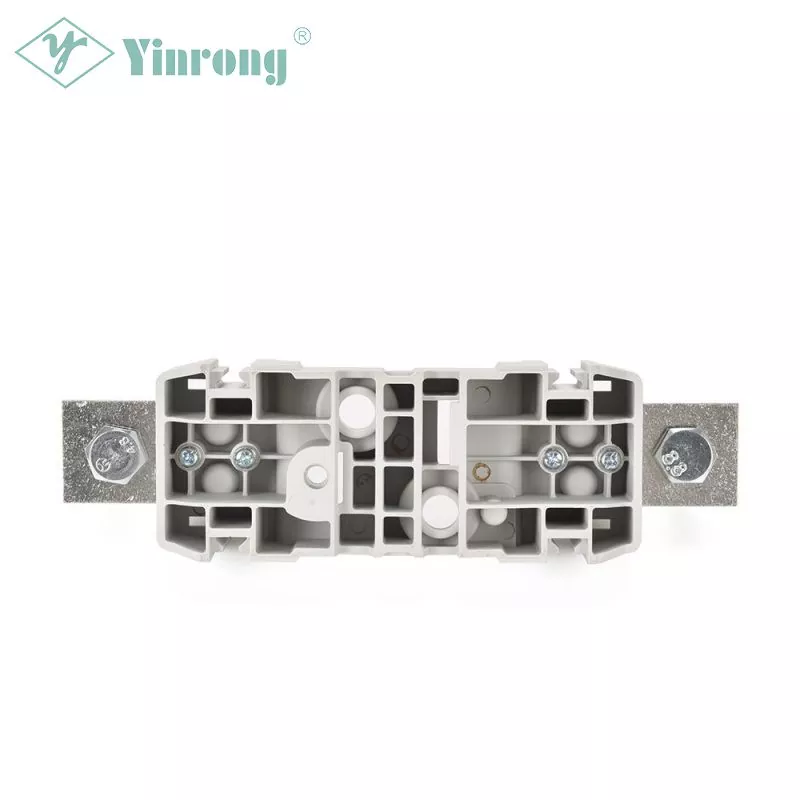

Compatible Fuse Holder

NH1Y

NH1Y-3P

Optional Accessory

NH Fuse Handle(Extractor)

Applications of 250A NH1 gG Knife-Blade HRC Fuse

- General industrial application

- Motor drive

- LV networks

- Electric cabinet

- Solid state relays

- Semiconductor devices

-Power rectifier

- Uninterruptible Power System

Country of Origin

People’s Republic of China

Parameters

Model/Size

Rated Voltage (V)

Rated Current (A)

NH1

500V/690V

32,40,50,63,80,100,125,160,200,224,250


Overall Dimension

A

D

E

H

H1

H2

135

72

48

65

20

48



Model

Rated Voltage

Rated Current

Overall Dimension

A

B

F

H

YR:Sist201

690V

250A

208

176

32

82

Sizes

Curve Characteristic
